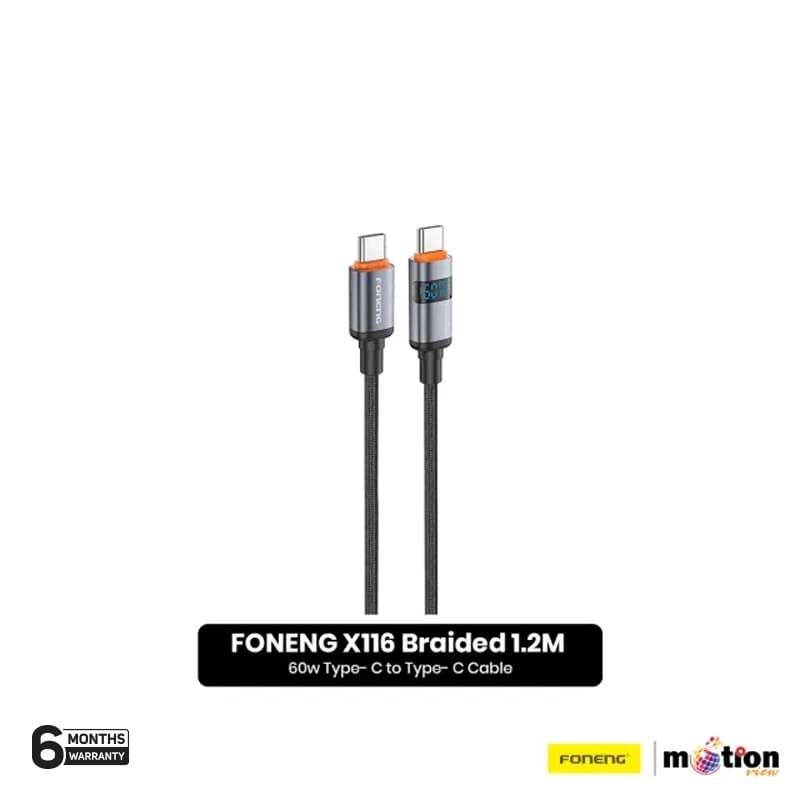

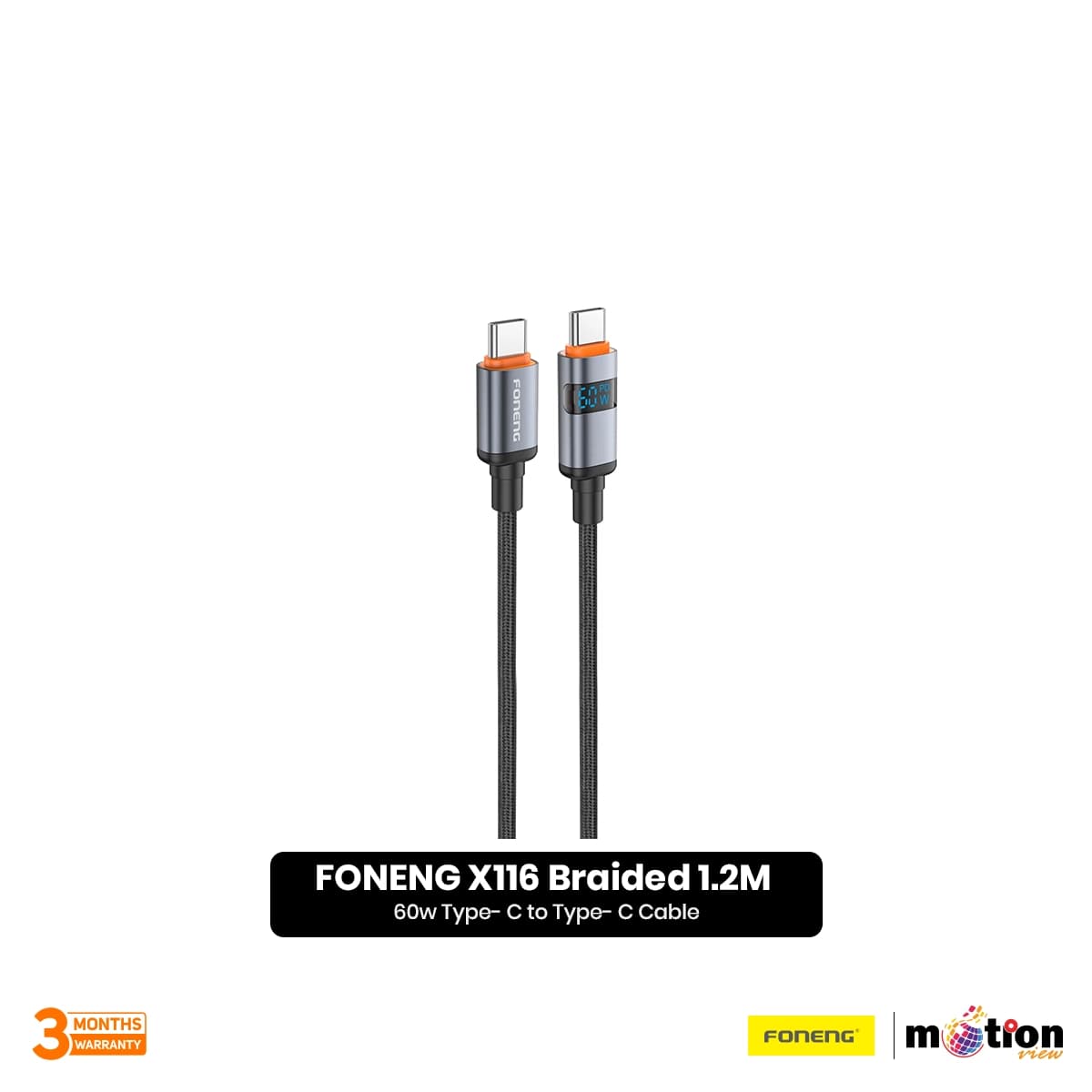

FONENG X116 Braided 1.2M 60w Type- C to Type- C Cable

FONENG X116 Braided 60W Type‑C to Type‑C Cable – Technical Specifications

General Information

• Brand: FONENG

• Model: X116

• Type: USB‑C to USB‑C Braided Cable (1.2 meters)

• Output Power: 60W maximum (USB Power Delivery)

• Cable Length: 1.2 meters

• Net Weight: 30 ±1 grams

• Design: Braided nylon exterior for durability and tangle resistance

Charging & Power

• Fast Charging Protocol: USB Power Delivery (PD) 3.0

• Maximum Power (Type‑C to Type‑C): 60W (supports 20V/3A, 15V/3A, 12V/3A, 9V/3A, 5V/3A)

• Smart Chip: Built‑in E‑Marker chip for safe power management and device recognition

• Note: Also supports Type‑C to Lightning PD charging up to 27W (with appropriate adapter/connector; not included with this cable)

Data Transfer

• Data Speed: Likely USB 2.0 (480 Mbps) – for exact specifications, confirm with manufacturer

• Function: Supports simultaneous charging and data transmission

Physical Specifications

• Cable Length: 1.2 meters (3.9 feet)

• Cable Diameter: OD 3.8mm

• Cable Core:

  • Power Conductors: 65/0.08 (65 strands of 0.08mm copper wire)

  • Data Conductors: 16/0.08 (16 strands of 0.08mm copper wire)

• Exterior: Braided nylon fabric for enhanced durability and flexibility

• Connectors: USB‑C male on both ends (24‑pin gold‑plated connectors for better conductivity)

Compatibility

• Laptops: Compatible with USB‑C PD laptops (MacBook, Dell XPS, HP Spectre, Lenovo Yoga, etc.)

• Tablets: iPad Pro, iPad Air, Samsung Galaxy Tab, Microsoft Surface, etc.

• Smartphones: Most modern USB‑C phones (Samsung Galaxy, Google Pixel, Sony Xperia, etc.)

• Power Banks & Chargers: Works with any USB‑C PD power adapter (minimum 18W recommended for fast charging)

Safety Features

• Over‑current Protection: Yes (via integrated smart chip)

• Over‑voltage Protection: Yes

• High‑Temperature Resistance: Braided sheath provides additional insulation

• Certifications: CE, RoHS, FCC (standard compliance)

What’s in the Box

• 1 × FONENG X116 60W Braided Type‑C to Type‑C Cable (1.2 meters)

Important Notes

• To achieve 60W fast charging, both the power adapter and the device must support USB PD at that wattage.

• The braided design improves cable lifespan and prevents tangling.

• This is a Type‑C to Type‑C cable only. The 27W Lightning PD charging capability refers to a different cable variant (Model X116 may have multiple SKUs).
