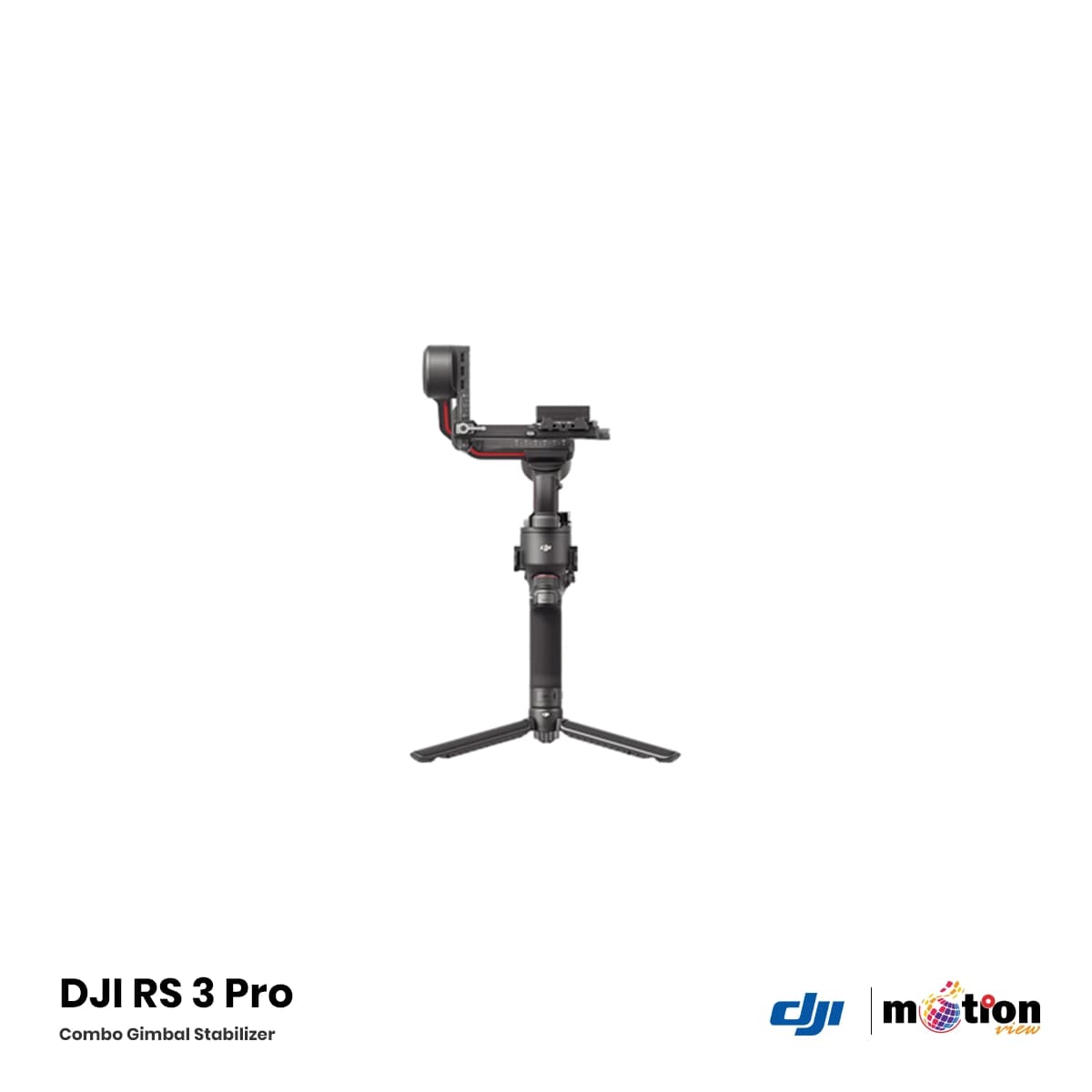

DJI RS 3 Pro Combo Gimbal Stabilizer

DJI RS 3 Pro Combo Gimbal Stabilizer – Technical Specifications

General Information

• Brand: DJI

• Model: RS 3 Pro Combo

• Type: 3‑Axis Camera Gimbal Stabilizer

• Body Material: Carbon Fiber + Aluminum Alloy

• Color: Black

• Warranty: 1‑Year DJI Warranty (excluding phone holder & accessories)

• Country of Origin: China

Gimbal Performance

• Number of Axes: 3‑Axis (Pitch/Tilt, Roll, Yaw/Pan)

• Max Payload Capacity: 4.5 kg (10 lbs)

• Rotation Range:

  • Pan (Yaw): 360° (unlimited)

  • Roll: 335° (-95° to +240°)

  • Tilt (Pitch): 326° (-112° to +214°)

• Max Follow Speed: 360°/s (all axes)

• Stabilization Algorithm: Third‑Gen RS Stabilization Algorithm

• Automated Axis Locks: Yes (for quick setup and transport)

• Quick‑Release Plates: Arca‑Swiss/Manfrotto compatible

Display & Controls

• Display: Fixed Touchscreen OLED

• Integrated Controls: Wireless shutter control, focus wheel, and customizable buttons

• Companion App: DJI Ronin App (for advanced settings, ActiveTrack Pro, and updates)

Connectivity

• Wireless Protocol: Bluetooth 5.0

• Wireless Frequency: 2.4 GHz (2.400 – 2.484 GHz)

• Ports: 3 × USB‑C (for power, data, and accessories)

• Mounting Points: 1 × 1/4”‑20 female thread, 1 × cold shoe mount

• Wireless Camera Control: Yes (via compatible cameras and Ronin Image Transmitter)

• LiDAR Compatibility: Yes (supports LiDAR focusing accessories)

Battery & Power

• Battery Type: Built‑in Lithium‑Ion Polymer (LiPo)

• Battery Capacity: 1950 mAh

• Voltage: 15.4 V

• Battery Runtime: Up to 12 hours

• Charging Time: Approx. 1.5 hours

• Operating Temperature: -20°C to 45°C

Physical Specifications

• Dimensions (Unfolded): 415 × 218 × 195 mm

• Dimensions (Folded): 276 × 268 × 68 mm

• Weight: 1497 g (≈1.5 kg / 3.3 lbs)

• Built‑in Tripod: Yes (detachable)

• Built‑in Selfie Stick: No

Compatibility

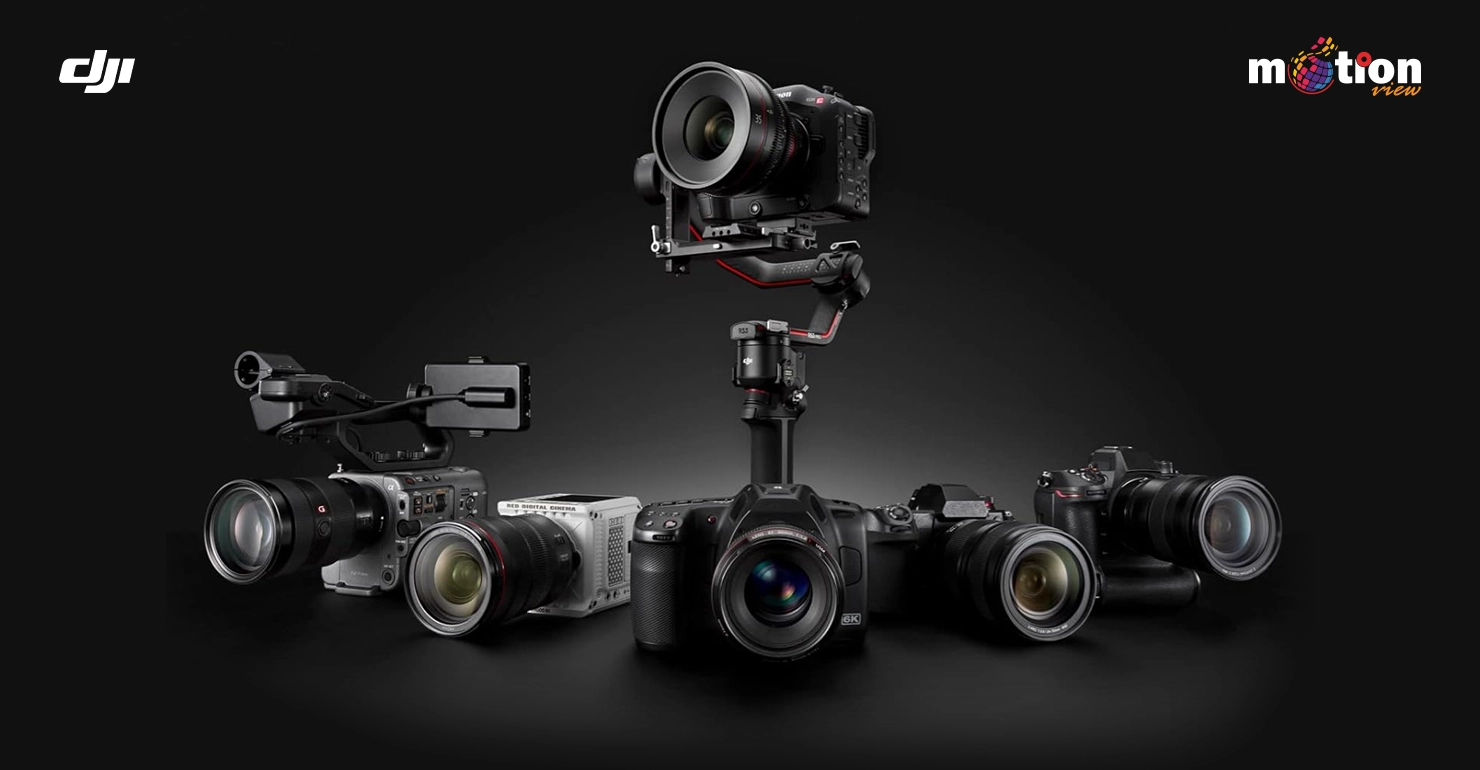

• Compatible Cameras: Extensive support for DSLR and mirrorless models from Canon, Sony, Panasonic, Nikon, Fujifilm, Blackmagic, Sigma, Olympus, Z CAM, and Leica (see detailed list above).

• Smartphone Mounting: Includes phone holder accessory.

• Accessory Ecosystem: Compatible with focus motors, Ronin Image Transmitter, LiDAR rangefinder, and more.

What’s in the Box (RS 3 Pro Combo)

(Extensive accessory kit for professional use)

• DJI RS 3 Pro Gimbal Body

• BG30 Battery Grip

• Carrying Case

• Focus Motor (2022)

• Ronin Image Transmitter

• Extended Grip/Tripod (Metal)

• Quick‑Release Plate (Arca‑Swiss/Manfrotto)

• Lower Quick‑Release Plate (Extended)

• Lens‑Fastening Support (Extended) & Strap

• Multi‑Camera Control Cable (USB‑C) ×2

• Mini‑HDMI to HDMI Cable (20 cm)

• Mini‑HDMI to Mini‑HDMI Cable (20 cm)

• Mini‑HDMI to Micro‑HDMI Cable (20 cm)

• Focus Gear Strip

• Focus Motor Rod & Mount Kit Combo

• Phone Holder

• USB‑C Power Cable (20 cm)

• USB‑C Charging Cable (40 cm)

• Hook‑and‑Loop Strap ×3

• Briefcase Handle

• Screw Kit

• Dreadlocks (cable management)

Key Professional Features

• ActiveTrack Pro: Advanced subject tracking via the Ronin app.

• Carbon Fiber Construction: Lightweight yet robust for heavy‑duty use.

• Wireless Remote Control: Option to control the gimbal remotely.

• Enhanced Ports & Expansion: Multiple USB‑C ports for powering accessories and camera control.
