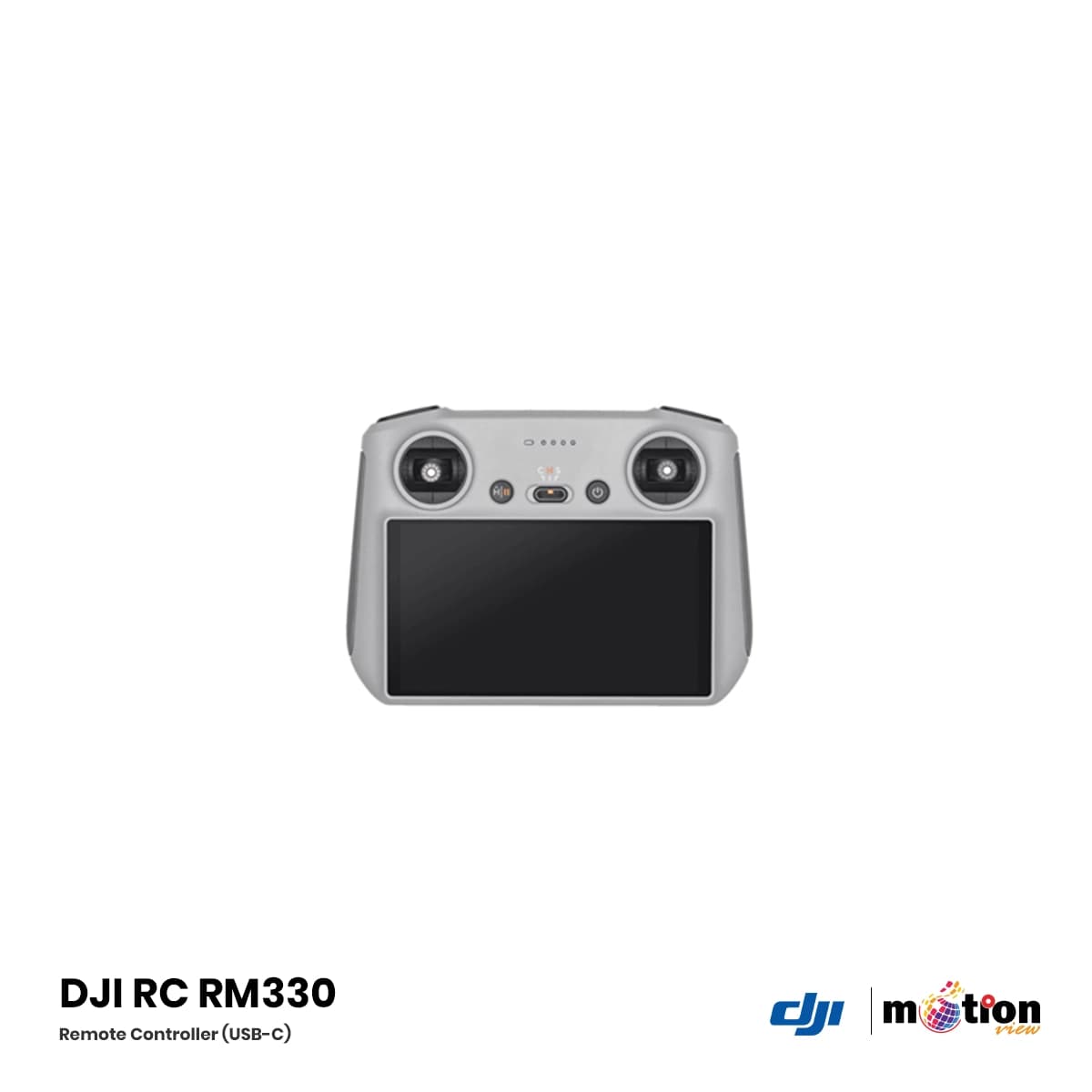

DJI RC RM330 Remote Controller

DJI RC RM330 Remote Controller – Technical Specifications

---

General Information

• Brand: DJI

• Model: DJI RC (Model RM330)

• Type: Remote Controller (Smart Controller with Integrated Screen)

• Color: Black & White

• Dimensions: 168.4 × 123.7 × 62.7 mm

• Weight: 390 g

• Warranty: 1‑Year DJI Warranty

• Country of Origin: China (assembly may vary by shipment: Mexico/Singapore/China)

---

Display & Interface

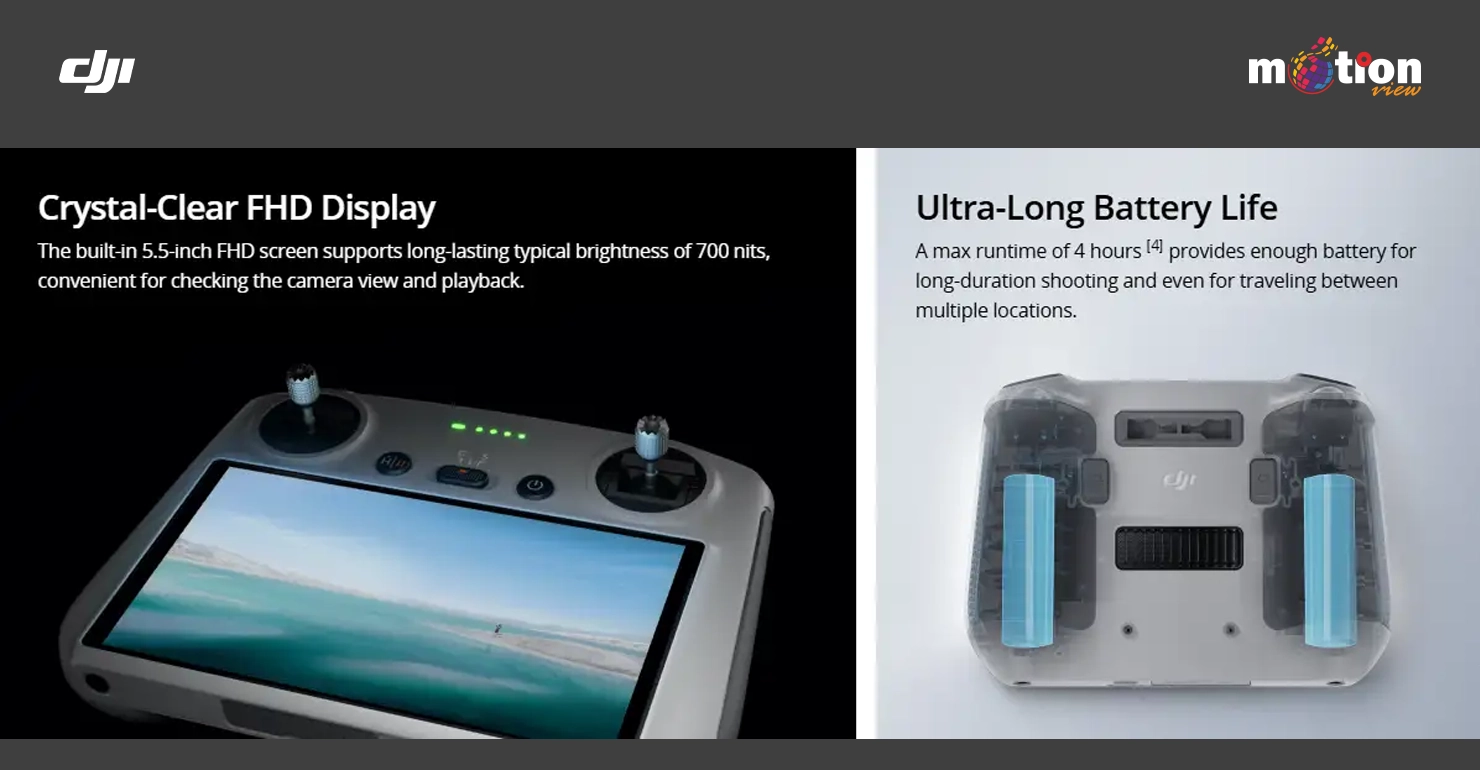

• Screen Size: 5.5‑inch

• Screen Resolution: 1920 × 1080 (Full HD)

• Brightness: 700 nits (high visibility in sunlight)

• Frame Rate: 60 fps

• Touch Controls: Yes (capacitive touchscreen)

• Video Output Port: No

---

Connectivity & Transmission

• Video Transmission System: OcuSync HD (automatically switches to the drone's specific tech: O3 or O3+)

• Max Transmission Distance (FCC):

  • DJI Mini 3 Pro / Air 2S: 12 km

  • DJI Mavic 3 Series: 15 km

• Max Transmission Distance (CE/SRRC/MIC): 8 km (for all supported drones)

• Operating Frequencies:

  • 2.4 GHz: 2.400‑2.4835 GHz

  • 5 GHz: 5.725‑5.850 GHz

• Antennas: 2 antennas (1T2R configuration)

• Transmitter Power (EIRP):

  • 2.4 GHz: 26 dBm (FCC), 20 dBm (CE/SRRC/MIC)

  • 5.725‑5.850 GHz: 26 dBm (FCC), 23 dBm (SRRC), 14 dBm (CE)

---

Supported Aircraft Models

• DJI Mini 3 Pro

• DJI Air 2S

• DJI Mavic 3 Classic

• DJI Mavic 3

• DJI Mavic 3 Cine

---

Wireless & Networking

• Wi‑Fi: Yes (802.11 a/b/g/n)

• Wi‑Fi Frequencies: 2.400‑2.4835 GHz, 5.150‑5.250 GHz, 5.725‑5.850 GHz

• Wi‑Fi Power (EIRP): 23 dBm (FCC), 20 dBm (CE/SRRC/MIC)

• Bluetooth: Version 4.2

• Bluetooth Frequency: 2.400‑2.4835 GHz

• GNSS: GPS + BeiDou + Galileo (for enhanced controller positioning)

---

Storage

• Internal Storage: Not specified

• Expandable Storage: microSD card slot (supports UHS‑I Speed Grade 3 or higher)

• Recommended Cards: SanDisk Extreme, Lexar 667x, Samsung EVO Plus, Kingston (64GB‑512GB, V30 A2 recommended)

---

Battery & Power

• Battery Type: Built‑in Lithium‑Ion

• Battery Capacity: 5200 mAh, 3.6 V

• Operating Time: Up to 4 hours

• Charging Time: Approx. 1.5 hours (with 5V/3A charger)

• Recommended Charger: 5V/2A or higher

• Rated Power: 4.5 W

• Operating Temperature: -10°C to +40°C

• Charging Temperature: 5°C to 40°C

bd

---

What’s in the Box

• DJI RC Remote Controller (RM330)

• Charging cable (USB‑C)

• Documentation

---

Key Features

• Integrated Bright Screen: Eliminates the need for a smartphone; provides a dedicated, high‑brightness display.

• OcuSync HD: Reliable, long‑range video transmission optimized for each compatible drone.

• Compact & Portable: Lightweight design with built‑in antennas.

• Multi‑GNSS: Enhanced positioning for the controller itself.
