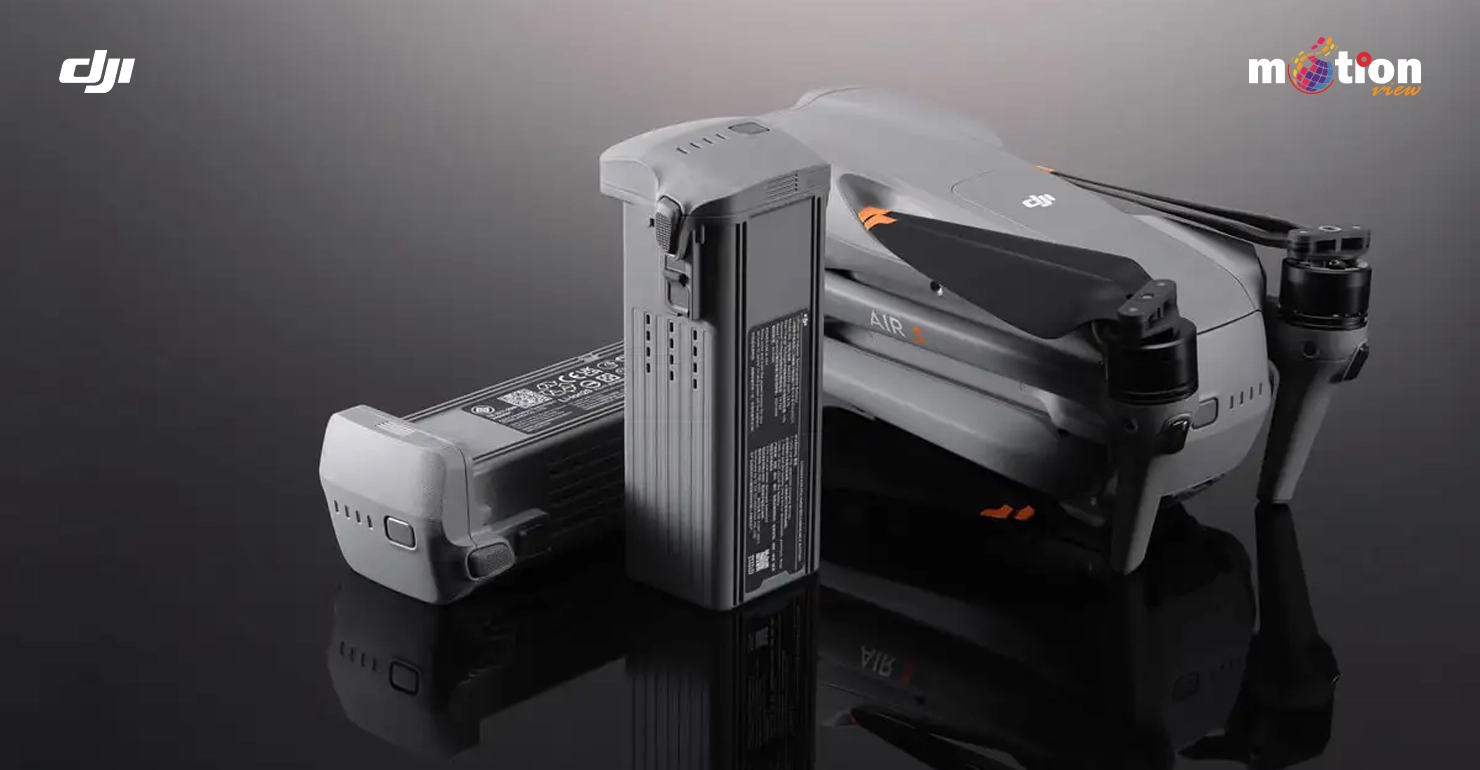

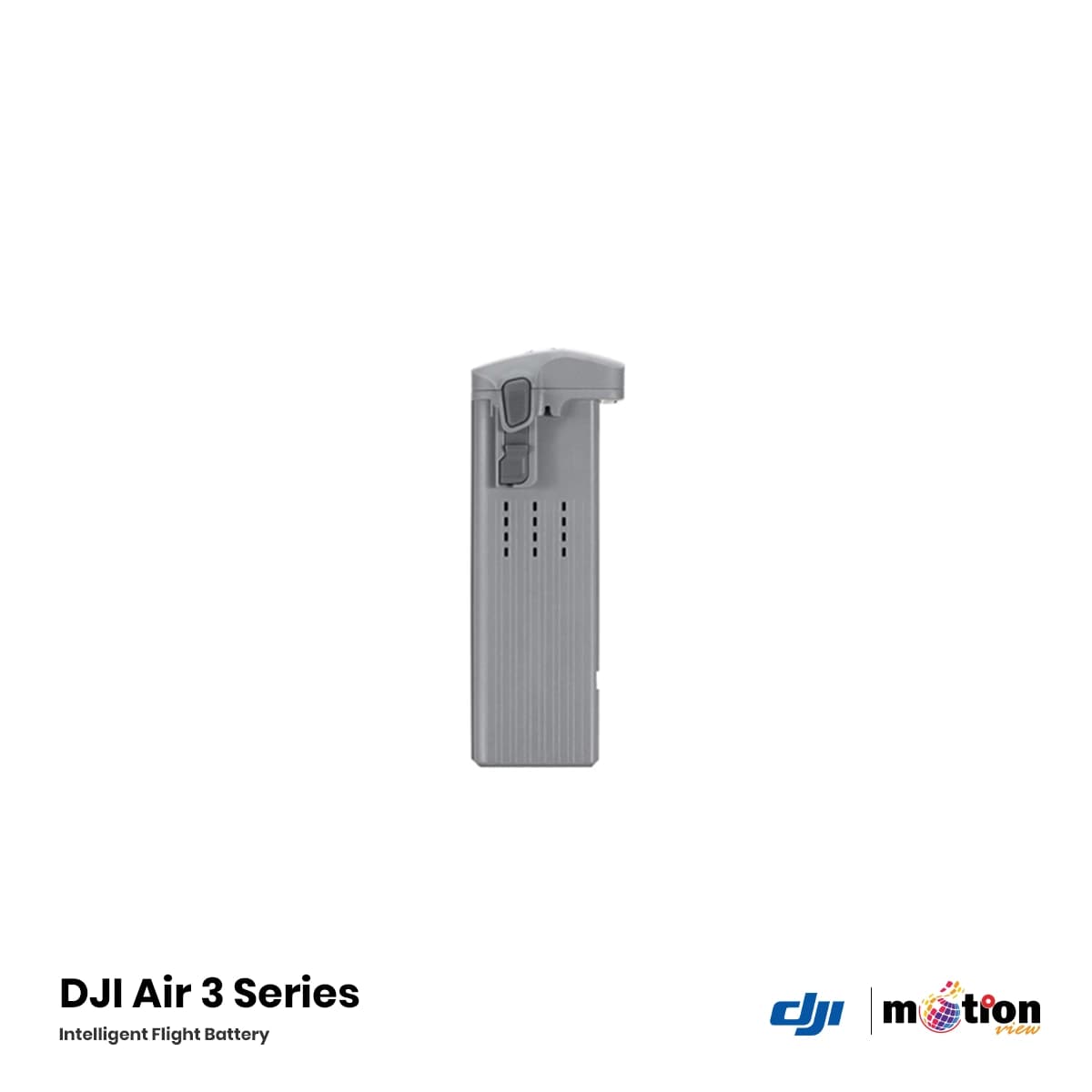

DJI Air 3 Series Intelligent Flight Battery

DJI Air 3 Series Intelligent Flight Battery – Technical Specifications

General Information

• Brand: DJI

• Model: DJI Air 3 Series (Part)

• Type: Intelligent Flight Battery

• Supported Aircraft: DJI Air 3 drone exclusively

• Color: Gray

• Warranty: No warranty specified (typically covered under aircraft warranty)

• Country of Origin: China

Battery & Power

• Battery Type: Lithium‑Ion (Li‑ion) 4S

• Battery Capacity: 4241 mAh

• Voltage: 4S configuration (14.8V nominal)

• Energy: Not specified (approx. 62.8 Wh calculated)

• Intelligent Features: Integrated battery management system (BMS) for charge monitoring, cell balancing, and temperature protection

Performance & Flight Time

• Max Flight Time: Up to 46 minutes (under ideal test conditions)*

• Test Conditions (DJI Standard):

  • Constant speed: 28.8 kph

  • Windless environment at sea level

  • APAS (obstacle avoidance) off

  • AirSense off

  • Camera: 1080p/24fps, video mode off

  • Battery from 100% to 0%

• Real‑World Note: Actual flight time varies with speed, wind, temperature, payload, and usage of features like ActiveTrack or higher video settings.

Charging & Safety

• Charging Temperature Range: 5°C to 40°C

• Storage & Operation: Follow DJI guidelines for battery care (store at ~50% charge if not used for extended periods)

• Safety Features: Over‑charge, over‑discharge, short‑circuit, and over‑temperature protection

Physical Specifications

• Weight: Not specified (integrated into aircraft's total weight)

• Design: Custom‑fit form factor for DJI Air 3

• Indicators: LED battery level indicators on the battery itself

What’s in the Box

• 1 × DJI Air 3 Intelligent Flight Battery

Important Usage Notes

• Compatibility: Designed only for the DJI Air 3. Do not attempt to use with other DJI models.

• Flight Time: The advertised 46‑minute flight time is a laboratory maximum. Always monitor the DJI Fly app for real‑time battery status and return‑to‑home reminders.

• Battery Care: For longevity and safety, charge and store within the recommended temperature range and avoid deep discharges.
